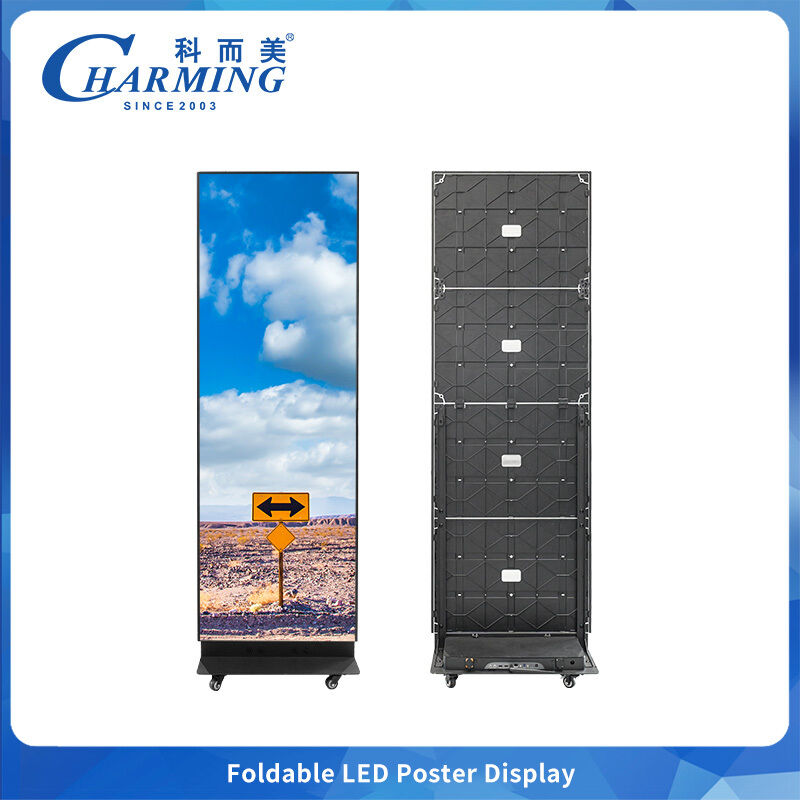

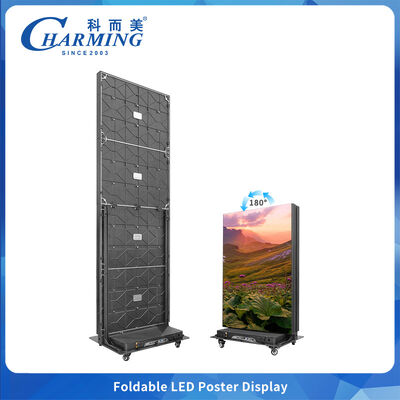

Foldable LED Poster Display Featuring High Refresh Rate GOB Process and Smart Mobile Control
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | Charming |
| Sertifika: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Model numarası: | P1.86、P2、P2.5 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 2 adet |
|---|---|
| Fiyat: | pazarlık edilebilir |
| Ambalaj bilgileri: | Karton Kutu, Tahta Sandık, Uçuş Çantası |
| Teslim süresi: | Ödeme Sonrası 30 İş Günü |
| Ödeme koşulları: | L/C, T/T, Western Union, PayPal, Nakit |
| Yetenek temini: | Haftada 500 adet |
|
Detay Bilgi |
|||
| Teslimat süresi: | 140° | Koruma Seviyesi: | IP43 |
|---|---|---|---|
| Kablo Ağı Malzemesi: | Alüminyum Alaşım | Bakım yöntemi: | Ön Bakım |
| Gri seviye: | 14-16 bit | Çalışma Sıcaklığı: | -20~40°C |
| Çalışma Nemi: | %10-%65RH | Çalışma voltajı: | AC220V,50/60HZ |
| Vurgulamak: | foldable LED poster display with GOB process,outdoor LED video wall with mobile control,high refresh rate LED display foldable |
||
Ürün Açıklaması
High Refresh Rate Foldable LED Poster Screen with GOB Technology and Intelligent Mobile Control
Advanced foldable LED poster screen featuring high refresh rate technology, GOB protection, and intelligent mobile control for superior display performance.
Product Features
-
High Refresh Rate
-
GOB Technology
-
Intelligent Mobile Control
Product Parameters
| Type Number | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Dimension(mm) | 657*2075*490mm | ||
| Pixel Pitch(mm) | 1.86mm | 2mm | 2.5mm |
| LED standard | SMD1515 | SMD1515 | SMD2020 |
| Scan Mode | 1/43Scan | 1/40Scan | 1/32Scan |
| Pixel density(dot/m) | 288906 | 202500 | 160000 |
| Max.Power(W) | 600W | ||
| Cabinet Weight(kg) | 48.8kg | ||
| Refreshrate(Hz) | 7680Hz | ||
| Brightness (CD/m) | 600CD/m² | 600CD/m² | 800CD/m² |
Installation Details
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the boxes
- Identify power and signal cables, then insert them into the corresponding box connections
- Connect the main signal and power cables to the computer and controller, then debug the screen for successful operation
Package Details
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
